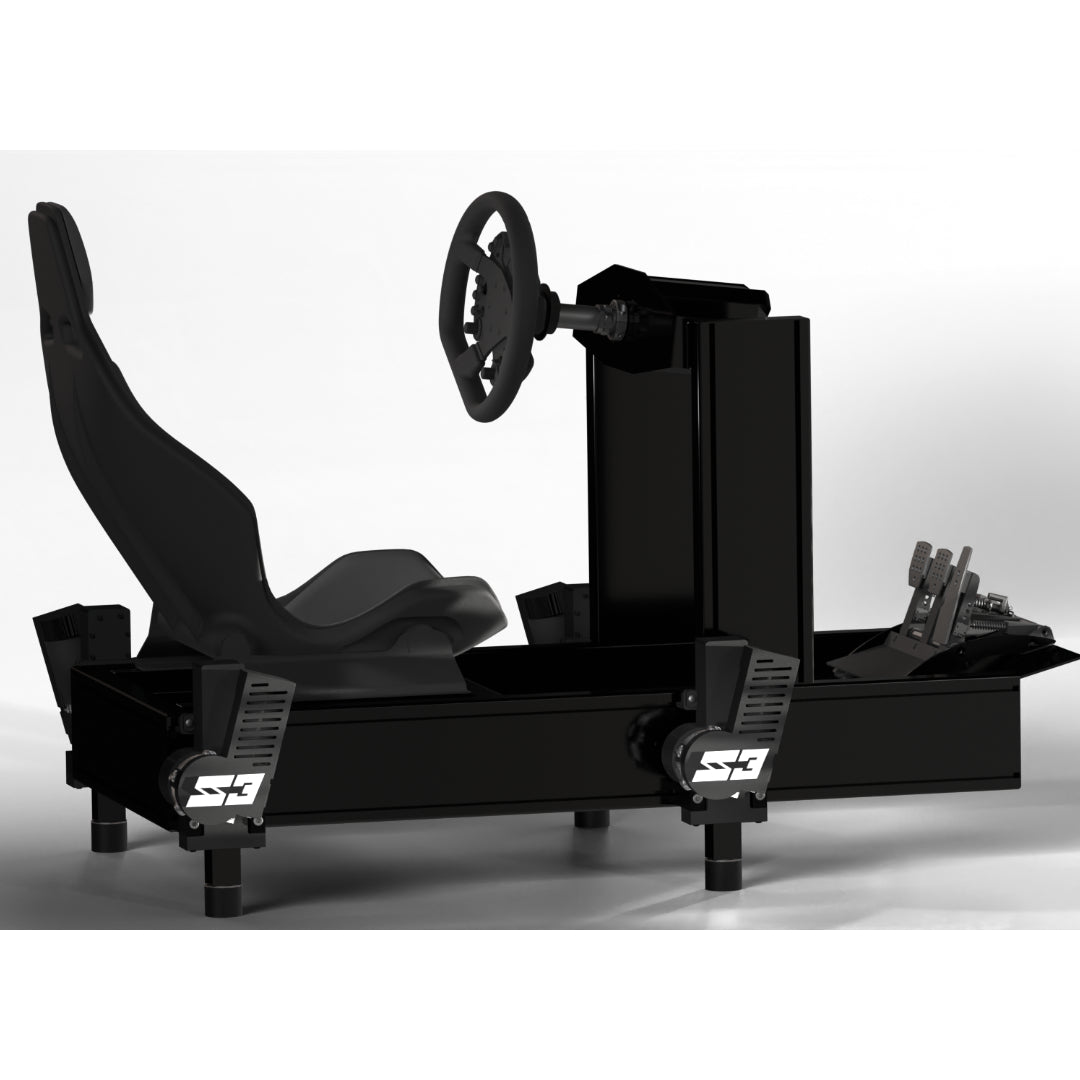

The SIMRIG EasyBracket Kit is a fast-install mounting solution for SIMRIG SR1, SR2, and SR3 motion systems. Designed for pre-built aluminum profile rigs, these brackets allow actuators to mount directly to the sides of the cockpit for faster installation and cleaner integration.
KEY BENEFITS
Reduces motion system installation time from hours to approximately one hour
Ideal for already assembled sim racing rigs
Simplifies actuator mounting without rebuilding the cockpit
Compatible with wider rigs over 620 mm
Creates a clean side-mounted installation setup
Color-matched black finish blends with SIMRIG actuators
Designed specifically for SIMRIG SR1, SR2, and SR3 motion systems
WHO IT’S FOR
The SIMRIG EasyBracket Kit is built for sim racers who already have an assembled aluminum profile cockpit and want a faster way to install a SIMRIG motion system. It is especially useful for wider rigs and users who want to avoid disassembling their existing setup. Whether you are upgrading a dedicated racing simulator or building a professional-grade motion cockpit, this SIMRIG EasyBracket Kit helps streamline the installation process.
KEY FEATURES
The EasyBrackets were introduced as an optional mounting solution for the SIMRIG SR1, SR2, and SR3 motion systems. Instead of requiring a full rebuild or underside mounting approach, the brackets allow actuators to bolt directly onto the sides of the rig for quicker setup and easier access.
The brackets feature a black finish designed to visually match the SIMRIG actuators for a cleaner overall appearance. They are intended for aluminum profile cockpits but are not compatible with 40x40 profile rigs.
For smaller or narrower rigs under 620 mm wide, SIMRIG recommends using 20x20 mm profiles instead of EasyBrackets. EasyBrackets are best suited for existing cockpits and larger-width configurations.
TECHNICAL SPECIFICATIONS
Compatible with SIMRIG SR1 motion system
Compatible with SIMRIG SR2 motion system
Compatible with SIMRIG SR3 motion system
Side-mounted actuator installation design
Black finish to match SIMRIG actuators
Not compatible with 40x40 profile rigs
Recommended for rigs wider than 620 mm
Estimated installation time: approximately 1 hour
Included Hardware:
8x M8x80 mm screws
8x Nordlock washers
8x M8x16 mm screws
8x M8I8 T-nuts
REAL-WORLD USE / EXPERIENCE
For many sim racers, adding a motion system to an already assembled cockpit can turn into a full teardown project. The EasyBracket Kit changes that process by allowing the actuators to mount directly to the side profiles of the rig. In practice, this means significantly less downtime, faster installation, and a cleaner upgrade path for existing setups. The result is a more approachable motion system installation without sacrificing rigidity or compatibility with larger cockpits.
See theuser manualfor more details on how to attach a motion system with EasyBrackets.

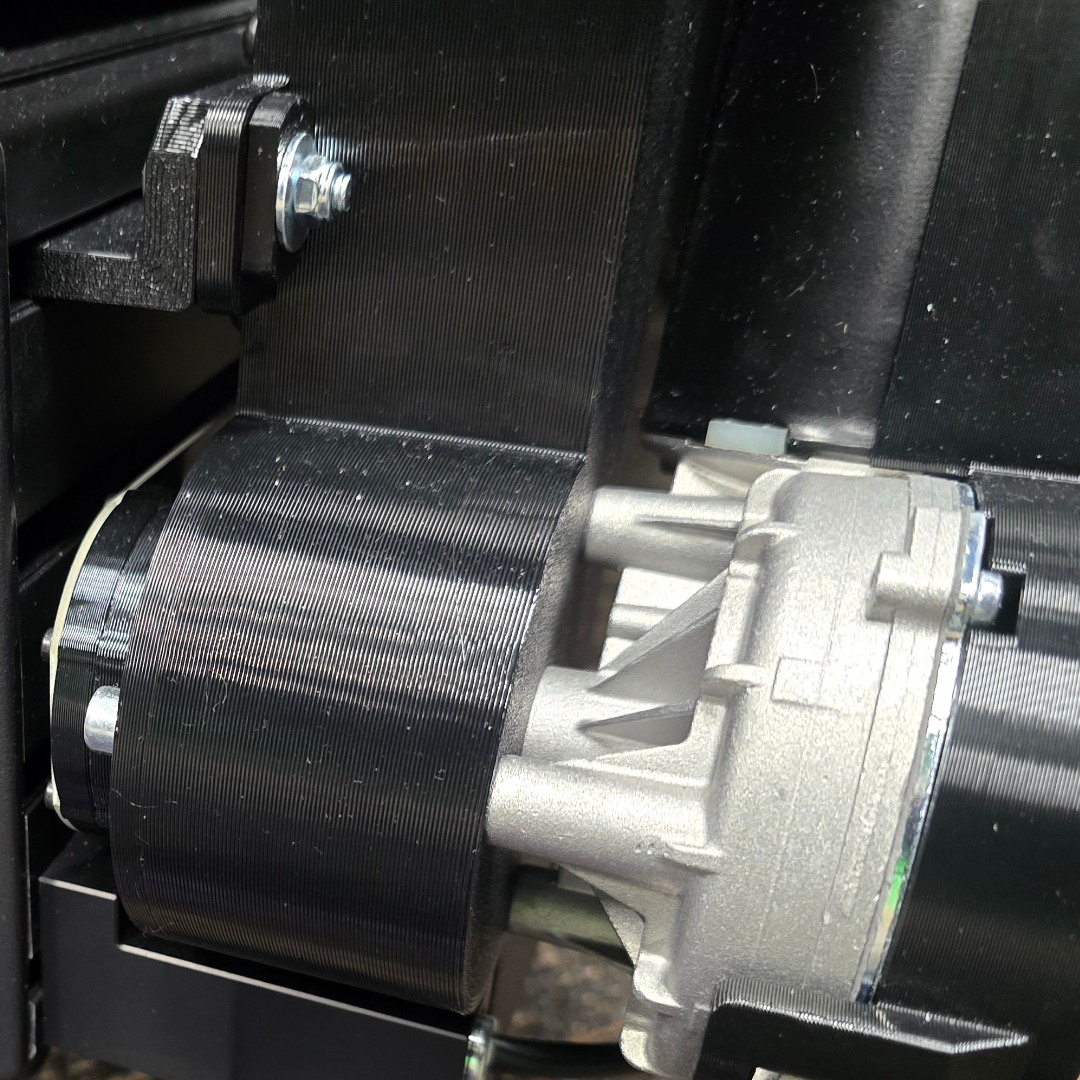

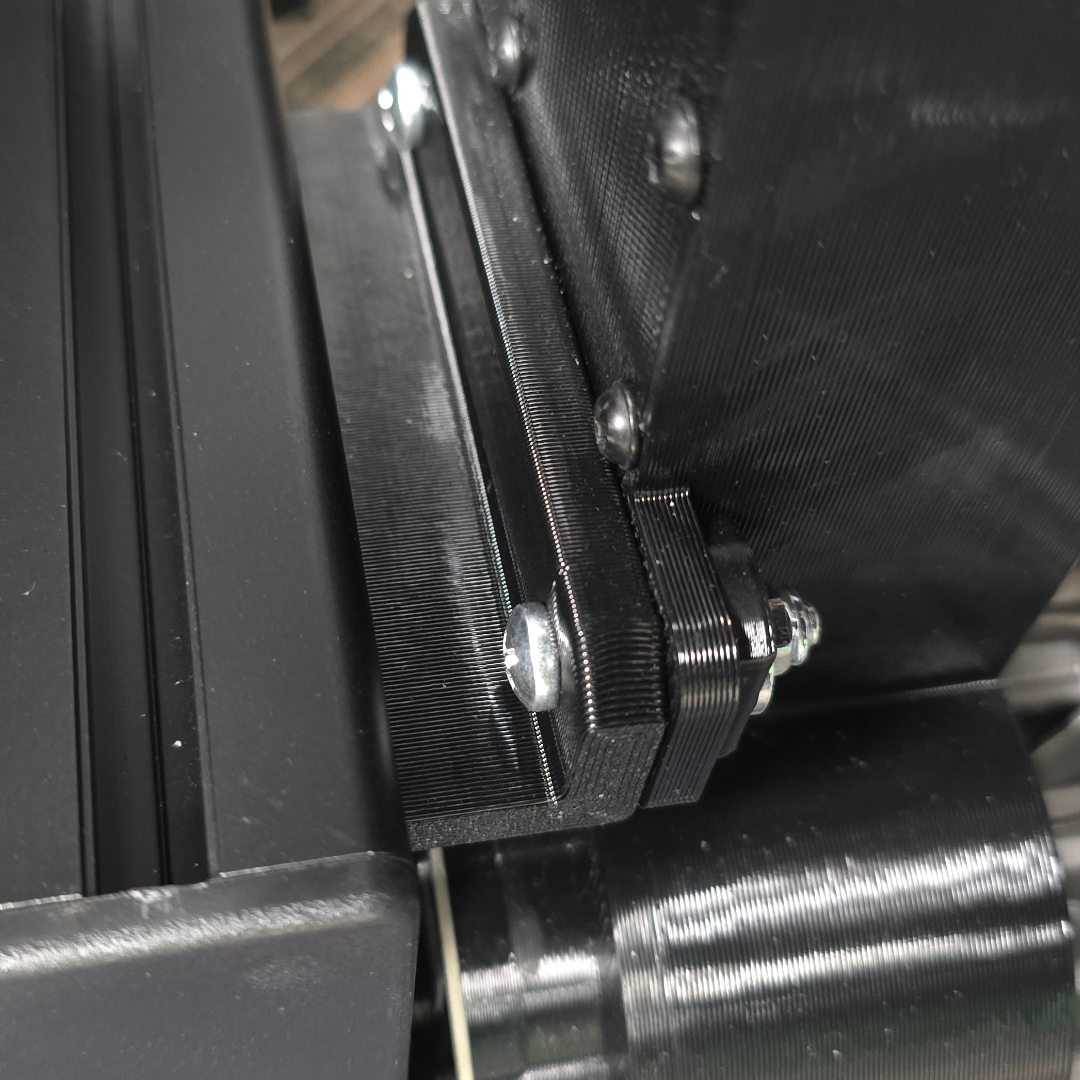

Figure: A SIMRIG SR2 bolts directly onto the rig using the pre-attached EasyBrackets.
